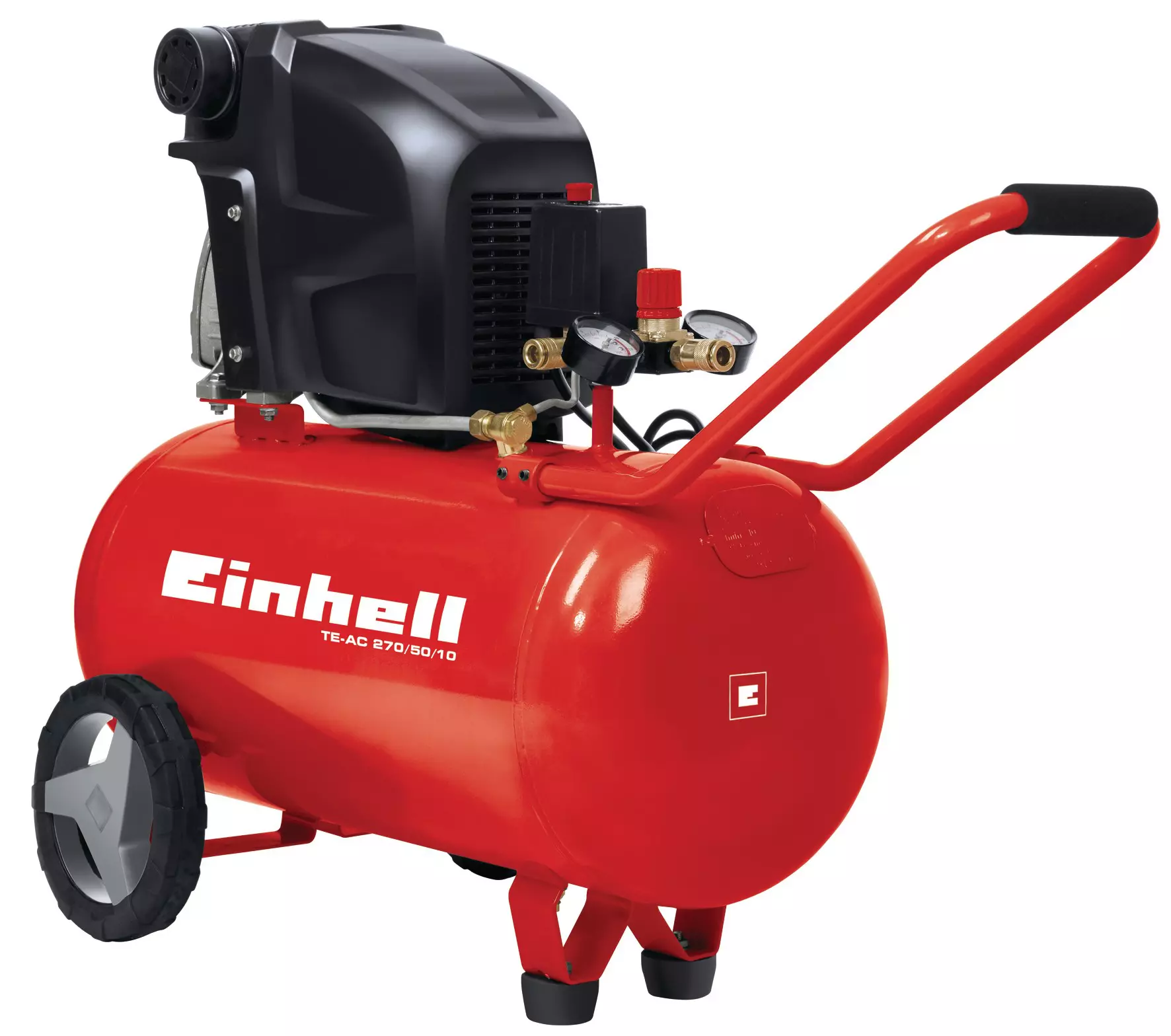

Air Compressor

TE-AC 270/50/10; EX; BR; 127V

Item no.: 4010443 EAN: 4006825608748
  • Oil lubrication contributes to long life
  • Oil level check through inspection window
  • The 50l tank offers plenty of air reserves
  • Applications up to 10 bar can be set using the pressure reducer

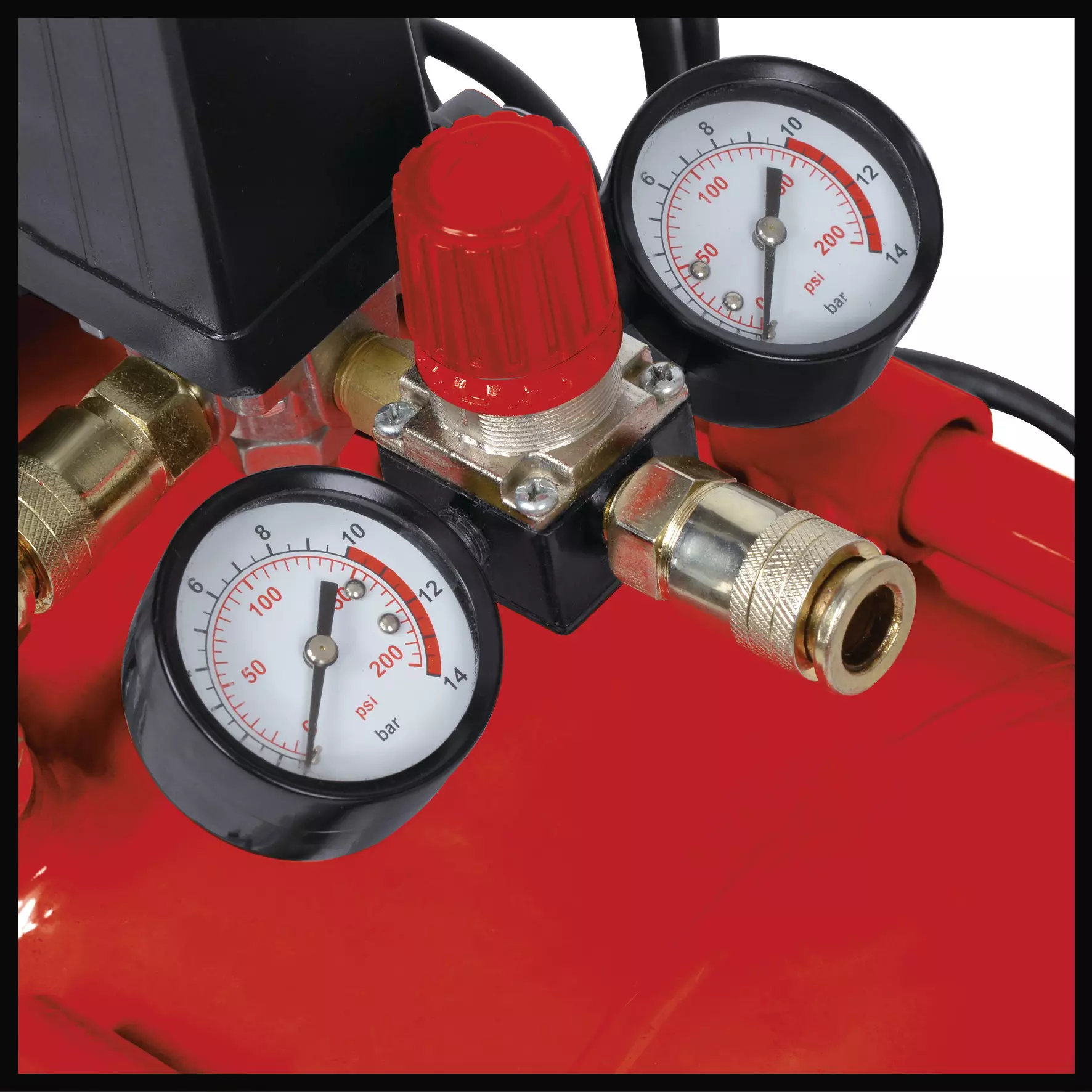

  • Large, easy-to-read pressure indicators
  • Pressure gauge, quick-release coupling for controlled pressure
  • Pressure gauge, quick-release coupling for uncontrolled pressure

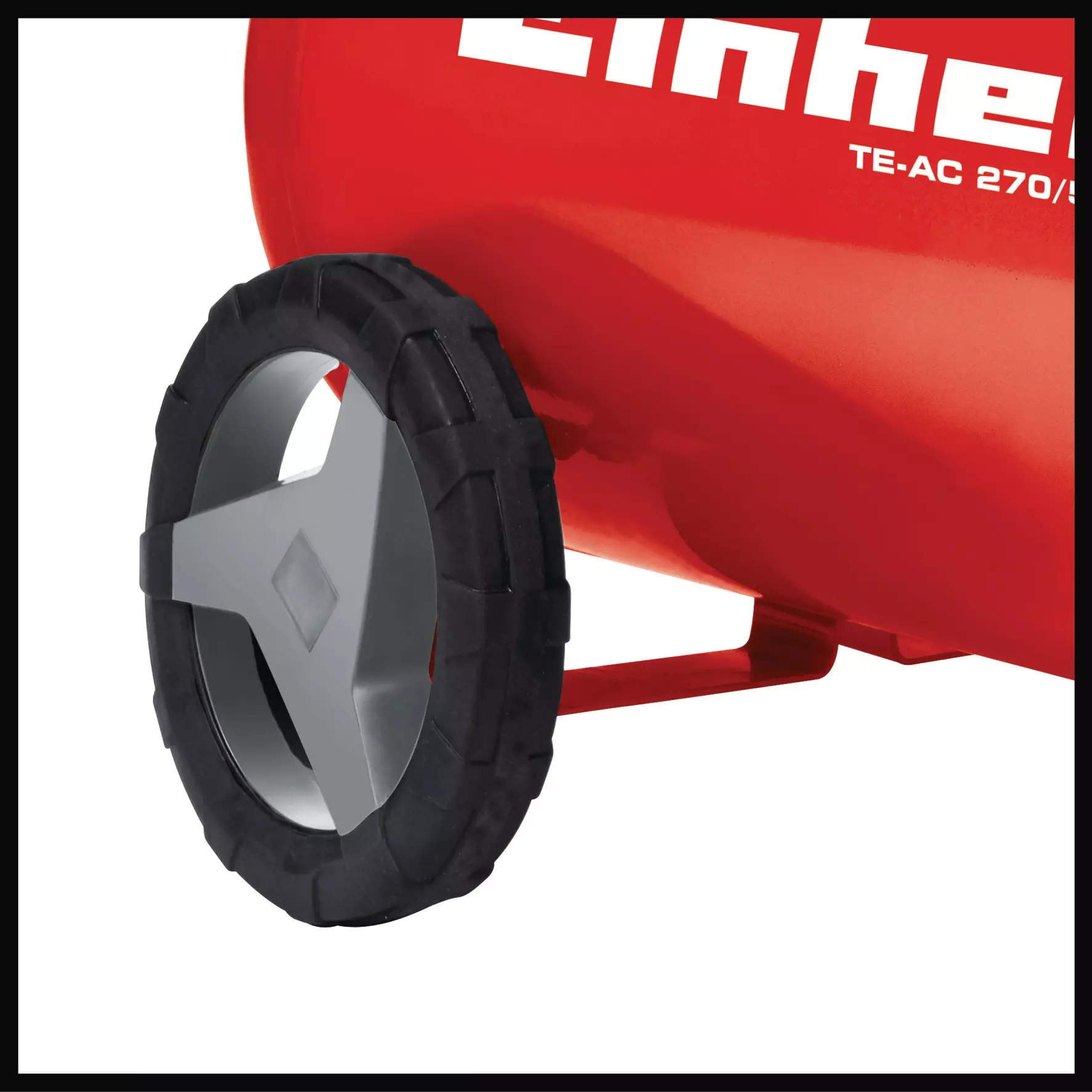

  • Large wheels and holding bar for easy transport

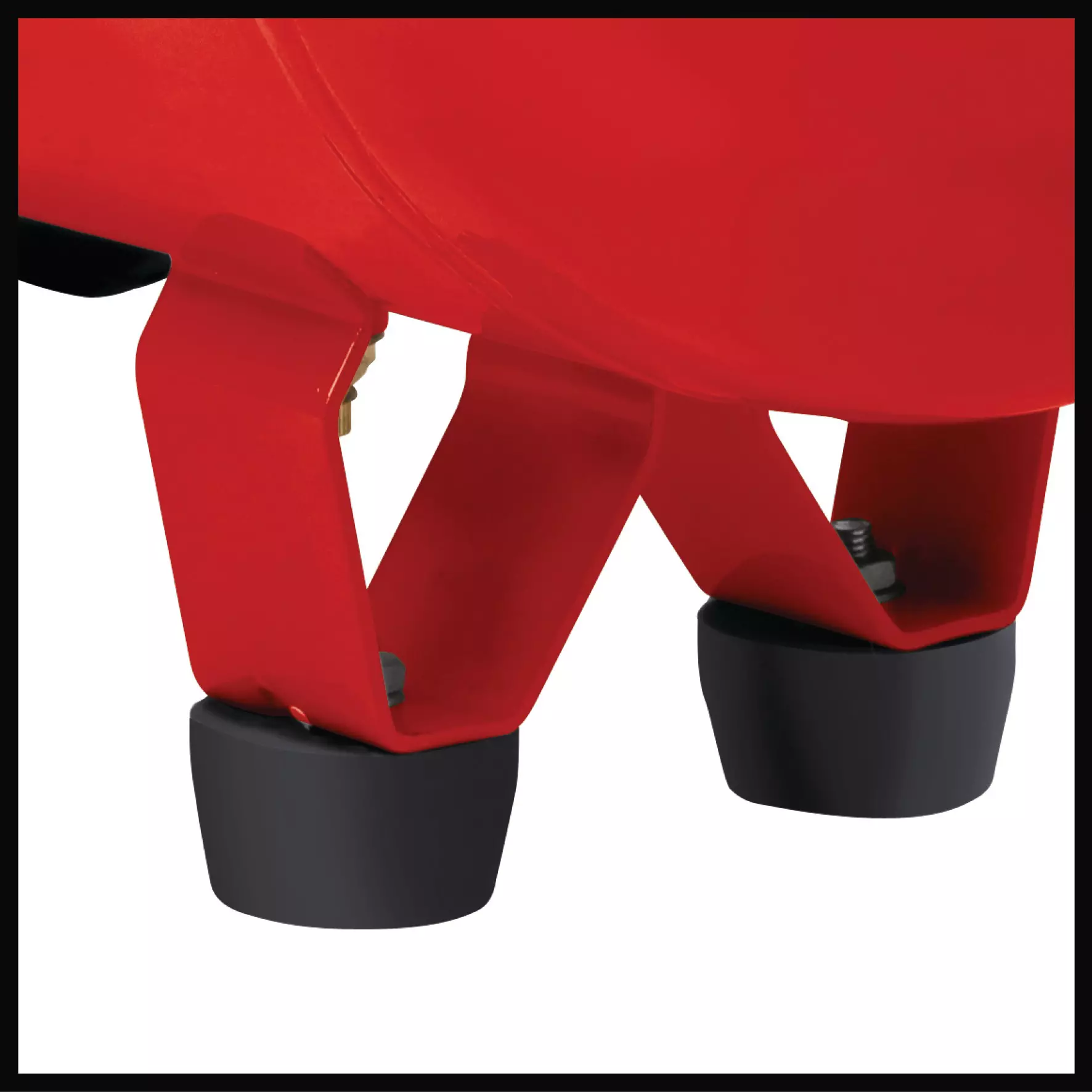

  • Vibration-absorbing feet ensure stability
  • The drain plug enables user-friendly maintenance
  • 10 year warranty against rusting through of the tank
  • Non-return valve, safety valve
See more information
Show less information
einhell-expert-air-compressor-4010443-productimage-001
Article description

The TE-AC 270/50/10 compressor is an efficient and robust endurance runner for high requirements. The high-quality components and oil lubrication ensure a very long service life. The oil level can be conveniently checked visually through the inspection window and on large pressure displays. The working pressure of up to 10 bar can be set to many applications using the pressure reducer. Huge reserves of compressed air for every application are held ready by the 50 liter tank. The controlled working pressure of the TE-AC 270/50/10 can be conveniently read off on the large pressure gauge and reduced by two quick-release couplings. A pressure gauge and a further quick-lock coupling are also available for working with uncontrolled tank pressures. The practical drain plug for letting off the condensate enables user-friendly maintenance. A non-return valve and a safety valve ensure the safe operation of the TE-AC 270/50/10, while the large wheels and holding bar enable easy transport. Complete with a 10-year guarantee against rusting through of the solid, long-lasting tank.

Technical details

Mains supply127 V | 60 Hz
Max. engine power1500 W
Motor speed3400 min^-1
Pump speed3400 min^-1
Suction capacity237 L/min
Output power at 0 bar175 L/min
Output power at 4 bar130 L/min
Output power at 7 bar98 L/min
Max. operating pressure10 bar
Tank volume50 L
Number of cylinders1 Pieces
Sound pressure level; Lpa77 dB (A)
Sound power level; Lwa97 dB (A)
